Hot rolled checked and lenticular riffled steel sheets
| Hot rolled checked and lenticular riffled steel sheets
steel grade S235JR
|  |
| ||||||

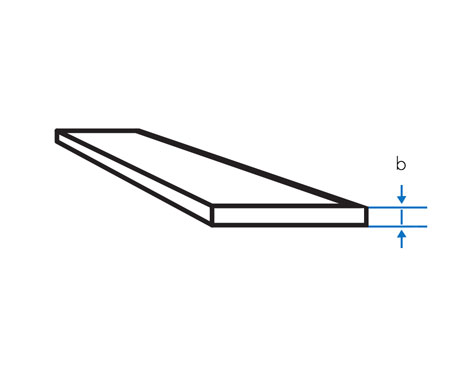

| Thickness, mm | Sheet width, length, mm / theoretical weight, kg/sheet | ||||
| b | a x c | ||||
| 1000x2000 | 1250x2500 | 1500x3000 | 1500x6000 | ||
| 3 | 53 | 84 | 120 | 240 | |
| 4 | 67 | 108 | 155 | 310 | |
| 5 | 85 | 132 | 190 | 381 | |
| 6 | 100 | 157 | 226 | 451 | |
| ↑ | ← |
