Hot rolled equal angles

prodused acc. EN 10056

steel grade SS235JR, S355J2

	- in stock
	- by order

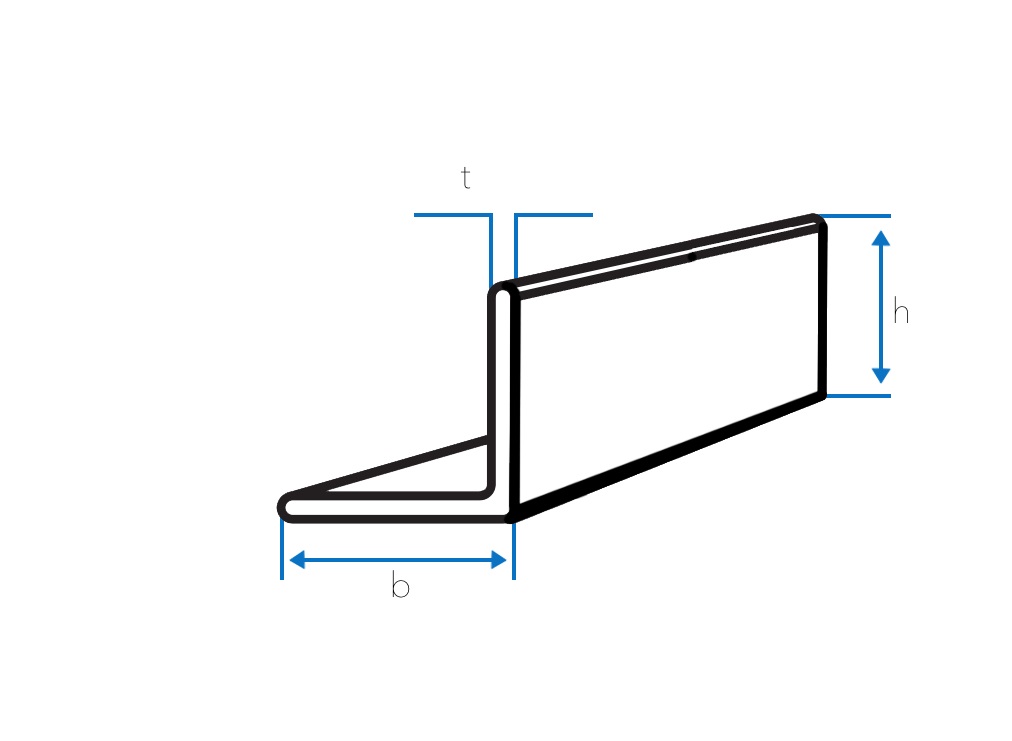

Dimensions, mm	Wall thickness, mm / theoretical weight, kg/m
h x b	t
	3	4	5	6	7	8	9	10	11	12	13	14	15	16	18	20	22	24
15 x 15	0.64
20 x 20	0.88	1.14
25 x 25	1.12	1.45	1.78
30 x 30	1.36	1.78	2.18	2.61
35 x 35	1.60	2.09	2.57	3.06
40 x 40	1.84	2.42	2.97	3.52
45 x 45	2.13	2.74	3.38	4.00
50 x 50	2.75	3.06	3.77	4.47	5.15	5.82
55 x 55			4.20	4.95
60 x 60		3.70	4.57	5.42		7.09	7,90	8.69
65 x 65			4.97	5.91	6.83	7.73	8.62
70 x 70			5.37	6.38	7.38	8.36	9.34	10.3
75 x 75			5.76	6.85	7.94	8.99	10.0	11.1		13.1
80 x 80			5.95	7.34		9.63		11.9		14.0
90 x 90				8.28	9.61	10.9	12.2	13.4
100 x 100				9.26	10.7	12.2		15.0		17.8		20.6
110 x 110						13.4		16.6		19.7
120 x 120						14.7		18.2	19.9	21.6		26.6	28.3
130 x 130						16.0	17.9	19.8		23.6	25.4	27.3	28.8	30.8
140 x 140								21.4		25.4			31.4
150 x 150								23.0		27.3		31.6	33.8	35.9	40.1	44.2
160 x 160										29.2		33.9	36.2	38.4	42.6
180 x 180													38.3	40.9	43.5	48.6	53.7
200 x 200										37.3	39.9		45.6	48.5	54.3	59.9	65.6	71.1
250 x 250															68.1	75.6	82.8	90.0
